Medical Gas Flow Analyser + Flow Totalizer
FlowData® is an IoT-enabled medical gas flow analyser designed to measure gas flow rate, monitor gas consumption & record flow data across hospital medical gas pipelines.
What Is a Medical Gas Flow Analyser?

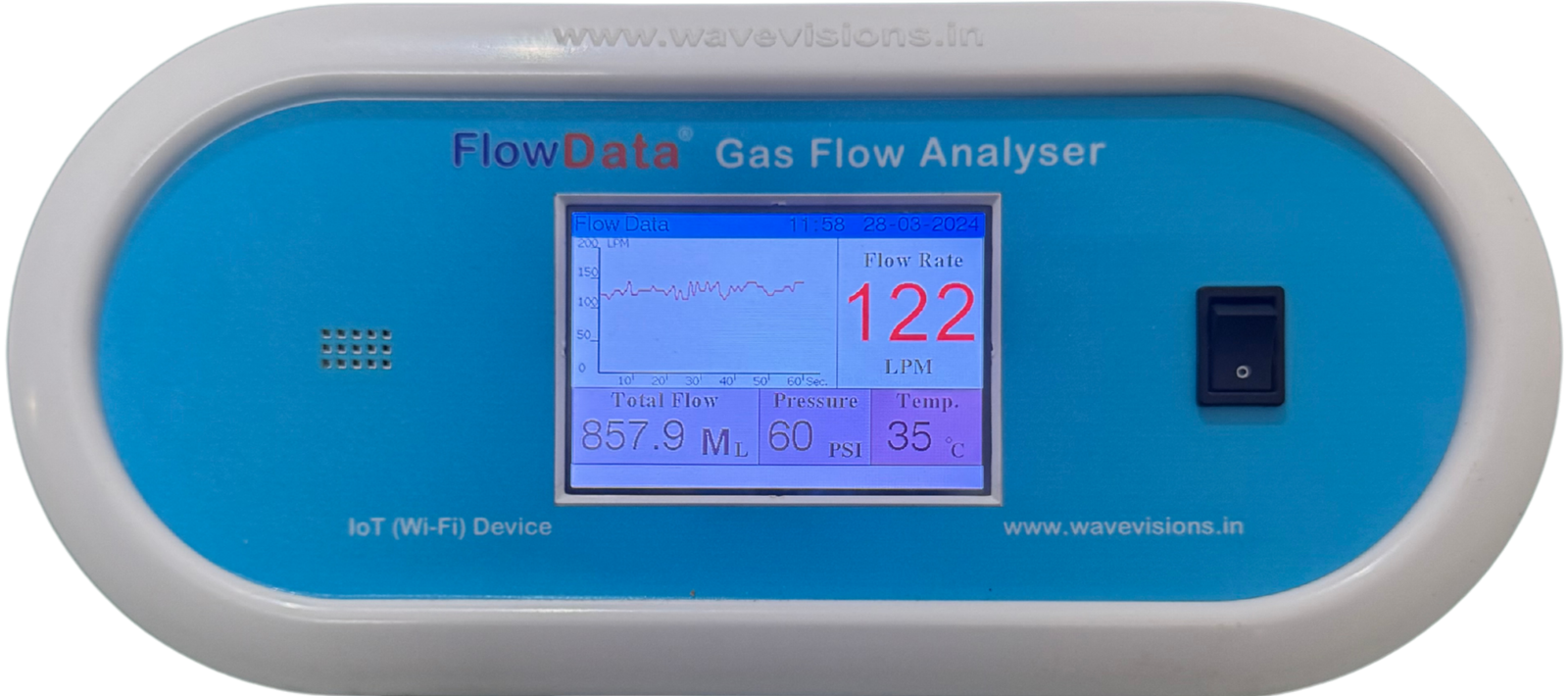

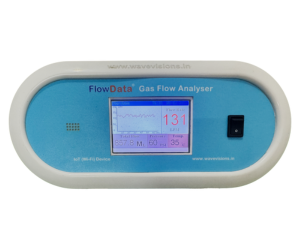

FlowData® is a Medical Gas Flow Analyser and Flow Totalizer designed for monitoring medical gas flow and gas consumption in hospital medical gas pipeline systems.
It measures the instantaneous flow rate of medical gases and records cumulative gas consumption over a selected period, helping hospitals understand how much gas is being used across critical areas.
FlowData is available with multiple flow measurement ranges from 0–100 LPM, 0–200 LPM, 0–500 LPM and 0–700 LPM, with 1 LPM resolution.
Key Features of FlowData® Medical
Gas Flow Analyser
Instantaneous Flow Measurement
Gas Flow Totalizer
Multiple Flow Ranges
IoT & Wi-Fi Connectivity
Touchscreen Control Panel
High & Low Flow Alarms
Room Temperature & Humidity
Wall Mount or Tabletop Installation
Features:
- Medical Gas Flow Analyser
- Hospital Gas Consumption monitoring
- Each Floor for Gas leakage / choke up monitoring
- Critical places – OT, ICU, Ward, etc…
- Instantaneous Flow rate measurement
- Flow Totaliser (Gas Consumption) for user set time
- 0-100 LPM or 0-200 LPM or 0-500 LPM or 0-700 LPM
- Can be used as Wall mount unit or Table-top unit
Specifications:
- Multiple Flow rate range options available: 0-100 / 200 / 500 / 700 LPM with 1 LPM resolution
- Flow Totaliser: 0-999,999 Liters over a user set time period of 0-999 Hours
- Flow Totaliser: 0-999,999 K Liters over the unit lifetime
- Room Temperature: 0-50°C with 1°C resolution
- Room Humidity: 0-100% with 1% resolution
- Battery backup time after full charge: 4-6 hours
- Wide Input voltage range: 90v to 260v to cover mains voltage fluctuations
Monitor Medical Gas Flow & Consumption
Flow Rate Monitoring: Monitor the instantaneous flow rate of medical gas through the pipeline.
Flow Consumption Monitoring: Track cumulative gas consumption using the built-in flow totalizer over a selected time period.
Flow Consumption Monitoring: Track cumulative gas consumption using the built-in flow totalizer over a selected time period.
The Work Flow:
Flow Rate
Totalizer
Data
Analysis
Report
Frequently Asked Questions
(FlowData FAQs)
A Medical Gas Flow Analyser is a device used to measure and monitor the flow of medical gases through a hospital gas pipeline. FlowData® measures the instantaneous gas flow rate and also tracks cumulative gas consumption using its built-in flow totalizer.
FlowData® primarily measures medical gas flow rate and gas consumption. It can also monitor pipeline pressure, room temperature and humidity, depending on the configured model and application.
A Medical Gas Flow Totalizer records the cumulative volume of medical gas consumed over a selected period. FlowData® provides both a user-set-period totalizer and a lifetime totalizer, helping hospitals monitor and analyse gas consumption.
FlowData® is available with multiple flow-rate ranges to suit different medical gas monitoring requirements:
0–100 LPM,
0–200 LPM,
0–500 LPM,
0–700 LPM.
The flow measurement resolution is 1 LPM.
Yes. FlowData® can be used for hospital medical gas consumption monitoring. Its flow totalizer records cumulative gas consumption over a user-selected period, making it useful for monitoring gas usage in different hospital areas.
FlowData® can be used in areas where monitoring medical gas flow and consumption is required, including:
- Operation Theatres (OT)
- Intensive Care Units (ICU)
- Hospital wards
- Medical gas pipeline systems
- Different hospital floors or zones
- Other critical medical gas areas

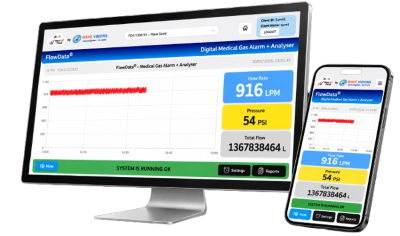

Yes. FlowData® features Wi-Fi and mobile connectivity for wireless monitoring and data management. Depending on the configuration, users can monitor data, manage alarms, store information, analyse readings and generate reports.
Yes. FlowData® is designed for both wall-mounted and tabletop installation, allowing it to be positioned according to the hospital’s monitoring requirements and available space.
Yes. FlowData® supports user-adjustable high and low alarm settings with audio and visual indications. This allows users to identify flow conditions that move outside the configured limits.
FlowData® provides continuous flow-rate measurement and cumulative consumption monitoring, helping hospitals understand medical gas usage and identify abnormal flow conditions. With its IoT connectivity, data can also be monitored, stored, analysed and used for generating reports.
